Our Control Panel Range

12 panel types engineered for industrial, commercial, and government applications — custom-built, tested, and commissioned by Voltex.

Filter:

Showing 12 of 12 panels

POWER

PCC Panel

Power Control Centre panels for main incomer distribution and protection in large industrial facilities. Handles incoming HT/LT feeders and distributes to outgoing MCCs and sub-distribution boards.

Up to 6300A ACB / MCCB Draw-out Type Bus-bar Chamber
Voltage Rating415V / 3Ph / 50Hz
Current RatingUp to 6300A
IncomerACB / MCCB
BusbarCopper / Aluminium
ProtectionOverload, Short Circuit, Earth Fault
EnclosureIP42 / IP54 (optional)
StandardIS 8623 / IEC 61439
Enquire Now
MOTOR

MCC Panel

Motor Control Centre for centralised starting, stopping, and protection of multiple motors. Available with DOL, star-delta, and VFD starters in fixed or withdrawable modules.

DOL / Star-Delta Withdrawable VFD Ready SCADA Interface
Voltage Rating415V / 3Ph / 50Hz
Current RatingUp to 3200A
Starter TypesDOL, Star-Delta, Soft Starter, VFD
Module TypeFixed / Withdrawable
ProtectionOverload, Short Circuit, Phase Failure
EnclosureIP42 / IP55
StandardIS 8623 / IEC 61439-2
Enquire Now
POWER FACTOR

APFC Panel

Automatic Power Factor Correction panel improves power factor to near unity, eliminates MSEDCL penalty charges, and reduces maximum demand — delivering significant energy cost savings.

Auto PF Correction Capacitor Bank Detuned Reactor Energy Saving
Voltage Rating415V / 3Ph / 50Hz
Capacitor Range25 KVAR to 1000 KVAR
ControllerAutomatic PF Controller (6/8/12 Step)
Target PF0.95 – 0.99 lagging
Capacitor TypeMPP / APP (Self-healing)
Detuned Reactor5.67% / 7% (optional)
StandardIS 13340 / IEC 60831
Enquire Now
VFD AUTOMATION

VFD Panel

Variable Frequency Drive panels for precise motor speed control, soft starting, and energy-efficient operation of pumps, fans, compressors, and conveyors.

Speed Control Soft Start Energy Efficient PID Control
Voltage Rating415V / 3Ph / 50Hz
Drive Capacity0.37 kW to 500 kW
Drive BrandsABB / Siemens / Danfoss / Schneider
Control ModeV/f, Sensorless Vector, PID
I/O InterfaceModbus RTU / Profibus / BACnet
EnclosureIP42 / IP54
Energy SavingUp to 30–50% on variable loads
Enquire Now
PLC

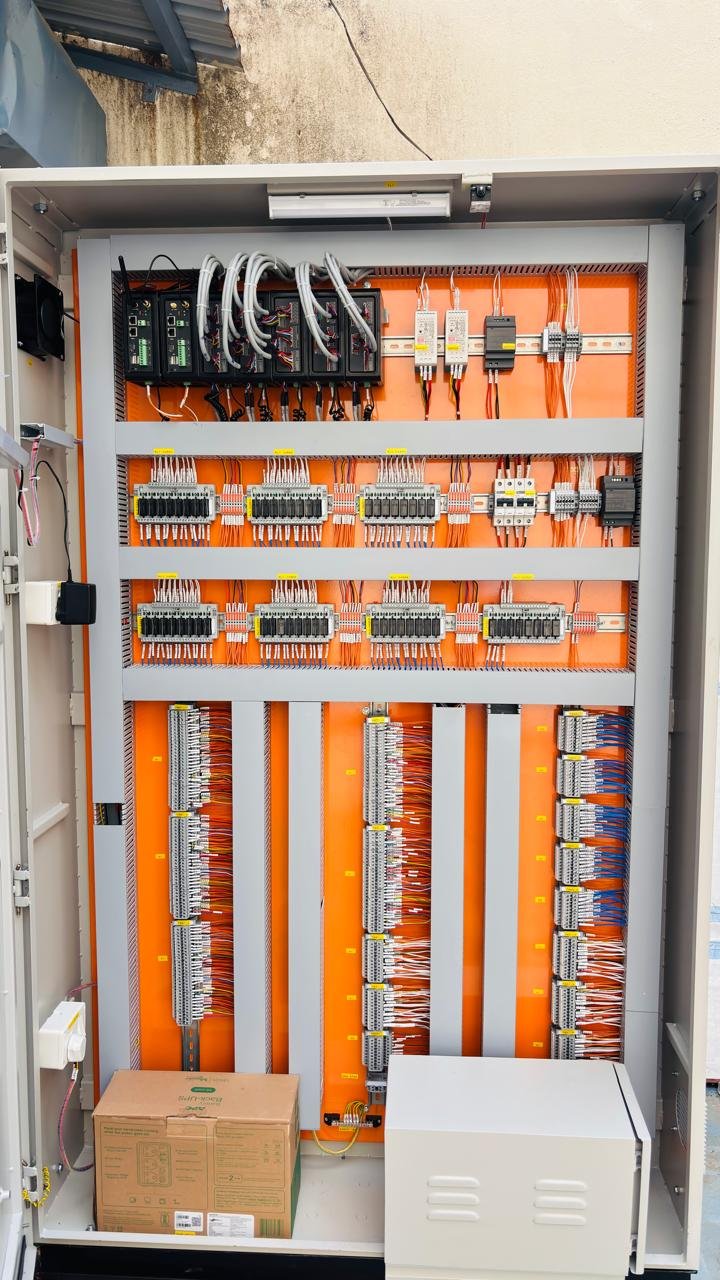

PLC Panel

Programmable Logic Controller panels for industrial process automation, sequence control, and SCADA/HMI integration. Customised ladder logic programming as per client process.

SCADA Ready HMI Interface Modbus / Profibus Remote I/O
PLC BrandsSiemens / Allen Bradley / Mitsubishi / Delta
I/O Range8 I/O to 1000+ I/O (modular)
CommunicationModbus RTU/TCP, Profibus, Ethernet/IP
HMI5" to 21" touchscreen (optional)
Power Supply24VDC SMPS inside panel
ProgrammingLadder, FBD, SFC as required
EnclosureIP42 / IP54 / IP65
Enquire Now
MAINS DG SET AMF / ATS

AMF Panel

Automatic Mains Failure panel detects mains power failure, auto-starts the DG set, and transfers load — ensuring uninterrupted power supply to critical facilities.

Auto Changeover DG Auto-Start ATS Logic Retransfer Timer
Voltage Rating415V / 3Ph / 50Hz
Transfer SwitchContactor / MCCB / ACB
DG Capacity10 kVA to 2000 kVA
Transfer Time8–15 seconds (adjustable)
ControllerDeep Sea / ComAp / Cummins
ProtectionOvervoltage, Undervoltage, Phase Failure
StandardIS 8623 compliant
Enquire Now
POWER

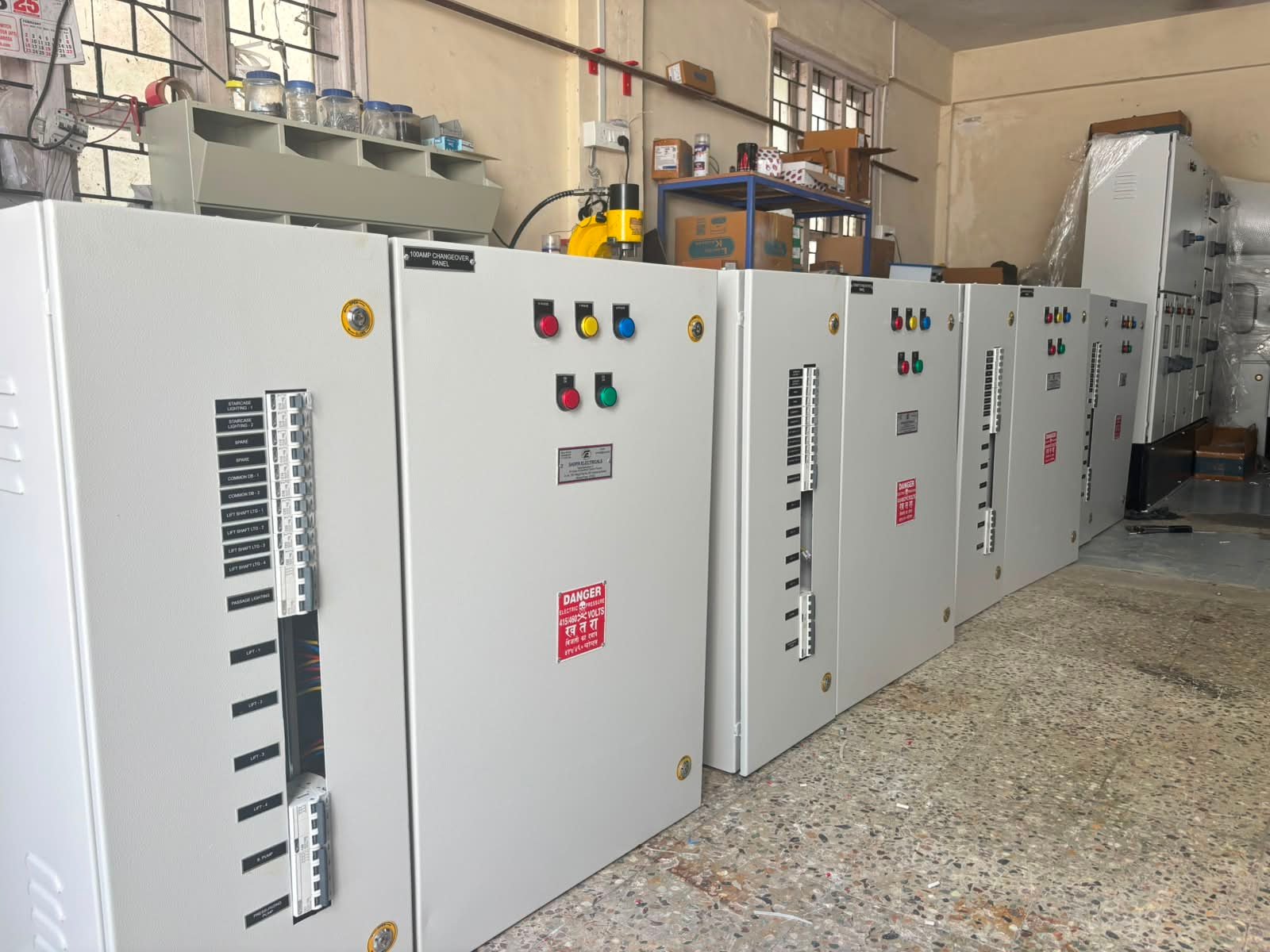

LT Panel

Low Tension distribution panels for sub-distribution of power from main PCC to individual loads, machinery, and sub-circuits within a plant or building.

Up to 4000A MCCB / MCB Metering Bus-bar Chamber
Voltage Rating415V / 3Ph / 50Hz
Current RatingUp to 4000A
IncomerACB / MCCB with TMP release
OutgoingMCB / MCCB / Fuse switch units
MeteringVoltmeter, Ammeter, Energy Meter
EnclosureIP42 / IP54
StandardIS 8623 / IEC 61439
Enquire Now
SYNC

Synchronisation Panel

Used for paralleling two or more DG sets or synchronising DG with mains supply. Ensures stable load sharing and seamless power handover without tripping.

DG Paralleling Load Sharing Auto Sync Droop Control
Voltage Rating415V / 3Ph / 50Hz
No. of DGs2 to 6 DG sets
Sync ControllerDeep Sea DSE / ComAp InteliGen
SynchronoscopeAnalog / Digital
Load SharingActive & Reactive power
ProtectionReverse power, overcurrent, earth fault
EnclosureIP42 free-standing
Enquire Now
DISTRIBUTION

Feeder Pillar Panel

Outdoor feeder pillar panels for street lighting, external power distribution, campus distribution, and utility connection points. Weatherproof and vandal-resistant enclosures.

Outdoor IP65 Street Lighting Weatherproof MSEDCL Approved
Voltage Rating415V / 3Ph or 240V / 1Ph
Current RatingUp to 630A
IncomerMCCB / TP MCB
OutgoingMCB / RCCB / Fuse links
Enclosure IPIP55 / IP65
MaterialGI / FRP / SS (weatherproof)
MountingPole / Wall / Plinth
Enquire Now
DISTRIBUTION

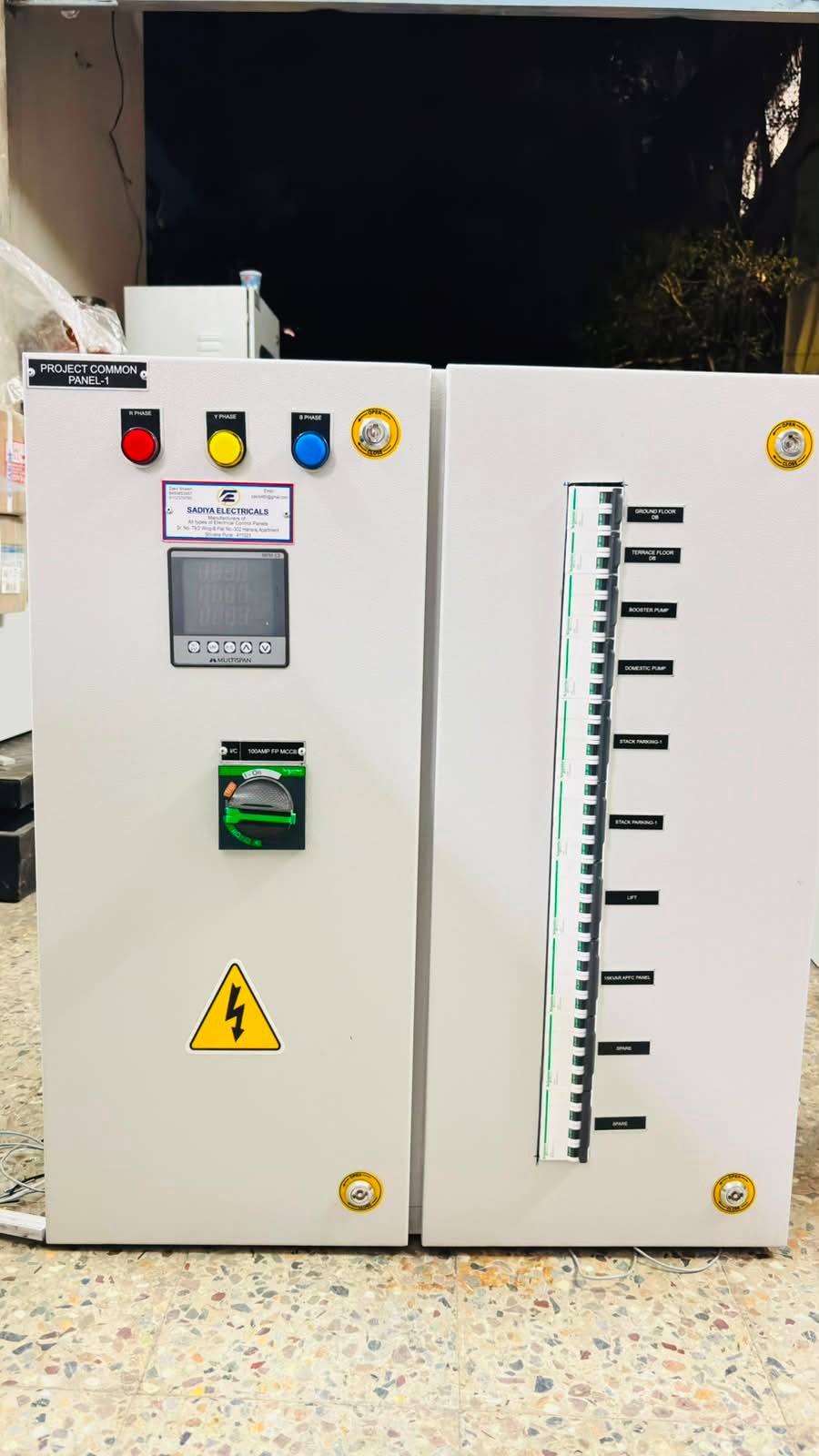

Power Distribution Board

Final distribution boards for commercial buildings, apartments, offices, and industrial sub-circuits. Available in surface-mount or flush-mount configurations with MCB/RCCB protection.

MCB / RCCB Surface / Flush Residential / Industrial DIN Rail Mount
Voltage Rating240V / 1Ph or 415V / 3Ph
Ways4 way to 48 way
IncomerDP / TP MCB / RCCB
ProtectionMCB + RCCB / RCBO combination
EnclosureMS / GI powder coated / GRP
MountingSurface / Flush / Pole
MakeLegrand / Hager / ABB / L&T
Enquire Now
PMCC

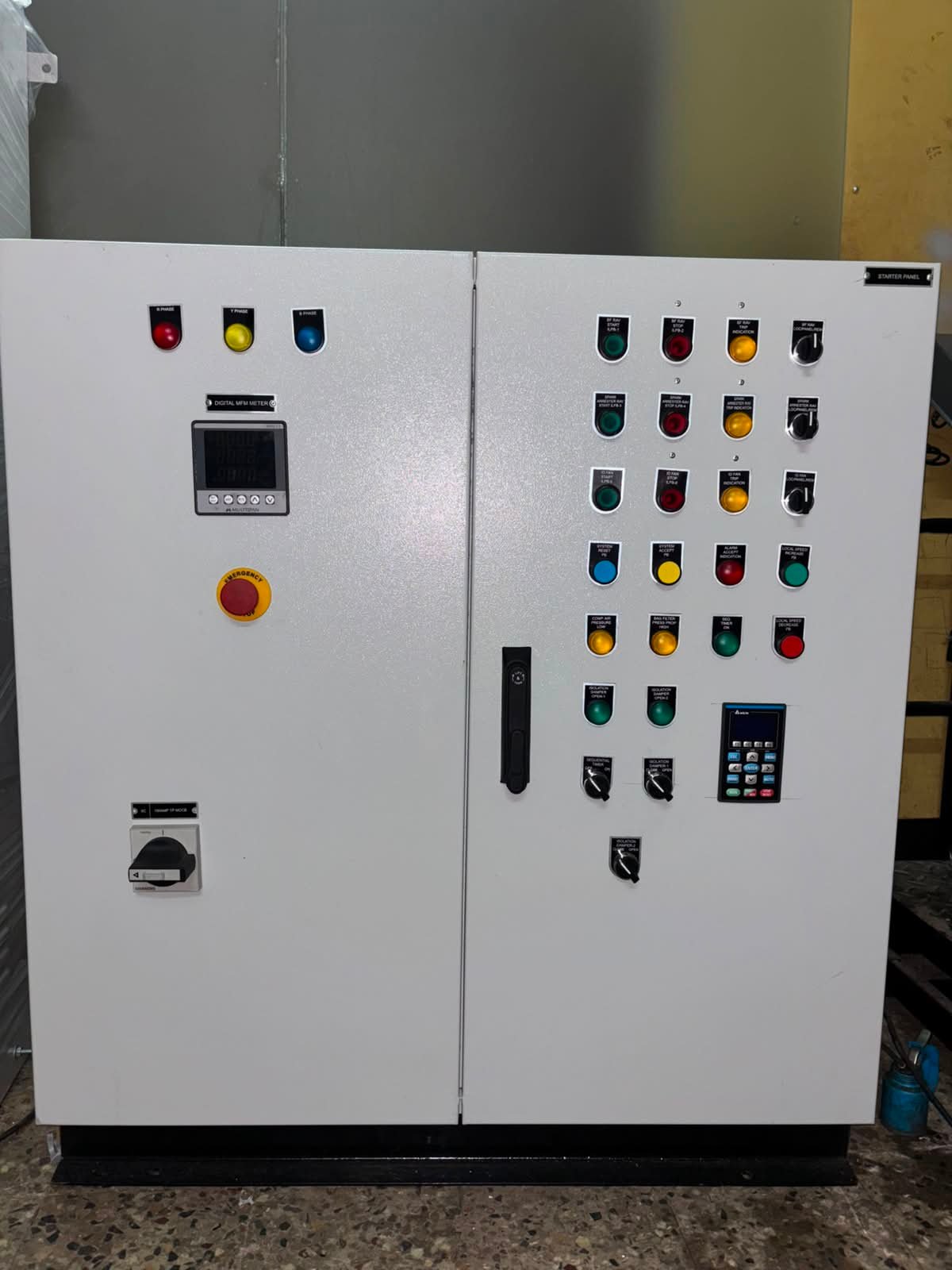

PMCC Panel

Power and Motor Control Centre combines power distribution (PCC) and motor control (MCC) in a single integrated panel — reducing footprint and cost for medium-sized plants.

Integrated PCC+MCC Space Saving Cost Effective Modular Design
Voltage Rating415V / 3Ph / 50Hz
Incomer RatingUp to 3200A ACB
Motor FeedersDOL / SD / Soft Starter / VFD
Bus SectionHorizontal + Vertical busbar
MeteringDigital multifunction meter
EnclosureIP42 (standard) / IP54 (optional)
StandardIEC 61439 Form 3b / Form 4
Enquire Now
JUNCTION

Junction Box

Industrial-grade junction boxes for field cable termination, signal distribution, and cable marshalling in hazardous and non-hazardous areas. Custom sizes and terminal configurations available.

GI / SS / GRP IP55 / IP65 Flameproof Option Custom Terminal
MaterialGI / SS 304 / GRP / Polycarbonate
ProtectionIP55 / IP65 / IP66
TerminalsPhoenix / Wago / Elmex (DIN rail)
Cable EntryGland / Conduit / Flexible
Hazardous AreaFlameproof Ex-d / ATEX (optional)
Size Range100×100 mm to 800×600 mm
MountingWall / Pole / Instrument stand
Enquire Now

No panels in this category

Try selecting a different filter above.
